AY-5410-D1-L1

TEMPEST Level 1 Laptop

Features
> TEMPEST Level 1 Compliant
          FullyCompliant with latest TEMPEST Standard

> 14″ FHD Widescreen LCD Display
          1920 x 1080 Resolution

> Removable 550GB SATA Hard Drive
          Optional 1TB SATA or 500GB Solid State Drive

> Intel i5 Processor
          Intel i7 Processor Option

> Lightweight and Mobile
          8.25lbs Standard Weight

> Backlit Keyboard
          Full Size Keys with Comfortable Palm Rest

Approval Status
AYON CyberSecurity productions are routinely tested and certified for compliance with TEMPEST and Military standard specifications as required by individual customer demand

    Warranty
    Lifetime TEMPEST Integrity.

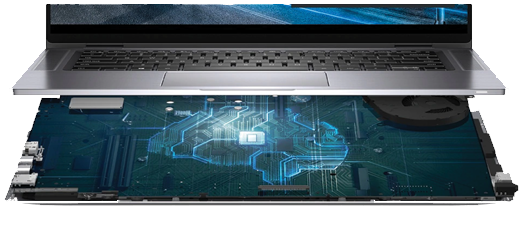

    The ACS AY5410-DL-L1 Laptop is a modified version of the commercially available Dell E5410 laptop that has a built-in 14″ FHD WLED non-touch display, will support multiple USB connectivity ports, DVI video out and 100MB fiber LC Ethernet connection. The unit will be configured with a 10th Generation Intel i7-10610U (4 Core, 8M cache, base 1.8GHz, up to 4.9GHz, vPro) Processor with integrated UHD 620 with Thunderbolt graphics, a removable 500GB or 1TB solid state drive, up to 32GB DDR4 memory as well as an integrated secure card reader.

    Power through the day: Get the world’s longest battery life in a 14″ mainstream business laptops*. Optional Super Low Power panel gives you more power savings without compromising resolution,

     color or brightness.

    Fast performance: Up to the latest 10th Gen Intel Core i7 vPro processors offer businesses the performance, manageability, bu

    ilt-in security features and stability of Intel vPro Platform and align to a future-proof roadmap.

    Specifications

    Processor

    Intel i5 (Optional i7)
    Max Turbo Speed 4.2G
    6M Smart Cache
    # of Cores: 4
    # of Threads: 8

    Chipset

    Series 400

    Memory

    8GB DDR4-2666 (max memory 32GB)

    Hard Disk

    Removable 500GB, 1TB or 500GB SSD Options

    Display

    14.0″ FHD Anti-Glare Display

    Graphics

    Intel UHD Graphics for 10th Generation

    Dimensions

    13.75″ x 9.75″ x 1.5″
    8.25lbs

    Connectivity

    2 USB 3.0 Ports Standard (Backwards Compatible)
    1 USB 2.0 Port
    100Mb/s SC Fiber Optic Interface

    Multimedia

    Stereo Speakers
    Headset Port (6 Pin LEMO)

    Options

    Smart Card Reader
    RS232 Interface
    9 Pin-D Headset Port
    LC Fiber Interface
    DVI Video Interface
    Radeon RX640 Graphics Processor with i7 Processor
